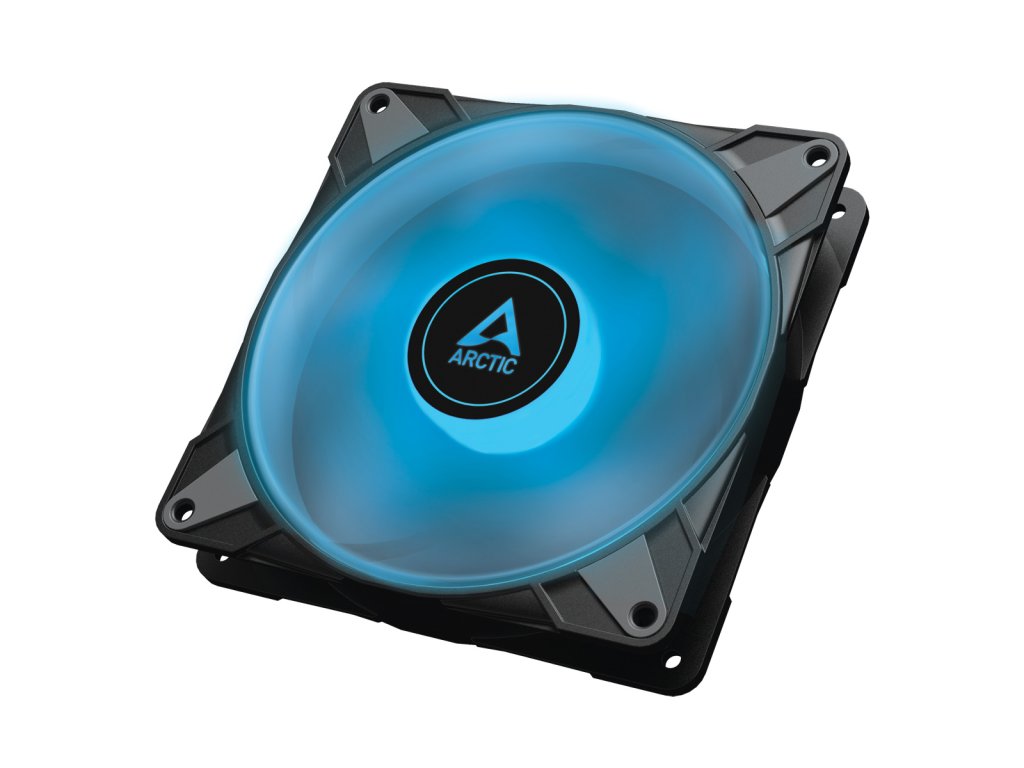

ARCTIC P14 PWM PST RGB 0dB – 140mm Pressure optimi

Detailní popis produktu

P14 PWM PST RGB 0dB

Semi-Passive 140 mm Fan with Digital RGB

RGB FOR FULL COLOURS

The P14 PWM PST RGB 0dB has 12 analogue RGB LEDs in the fan barrel. These can be controlled uniformly and are compatible with the common RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the RGB mainboard connection or via an external controller and synchronised with the illumination of other hardware.

0DB MODE - ZERO RPM

The speed of the P14 PWM PST RGB 0dB can be throttled to a standstill via PWM. This allows for silent operation in IDLE and at the same time guarantees maximum performance when needed.

MAXIMUM SMOOTHNESS, MINIMUM VIBRATION

The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST RGB 0dB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

OPTIMISED FOR HIGH STATIC PRESSURE

The P14 PWM PST RGB 0dB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

0 TO 1900 RPM CONTROLLED VIA PWM PST

With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST RGB 0dB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

HIGH QUALITY PLAIN BEARING

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.

General data

Performance

Fan Speed: 0 - 1900 rpm

Airflow: 68.9 CFM/ 117.06 m3/h

Static Pressure: 2 mm H2O

Noise Level: 0.3 Sone

Operating Ambient Temperature: 0 - 40 °C

Fan

Fan Frame: Standard

Control Type: PWM PST

Connector: 4-Pin-Connector + 4-Pin-Socket

Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:

Typical Voltage: 12 V DC

Starting Voltage: 5 V

Current/ Voltage: 0.17 A / 12 V

Cable Lenght: 400 mm

Size & Weight

Lenght: 140 mm

Width: 140 mm

Height: 27mm

Weight: 210g

Packaging

Width: 167 mm

Height: 34 mm

Length: 167 mm

Weight: 0.297 kg
