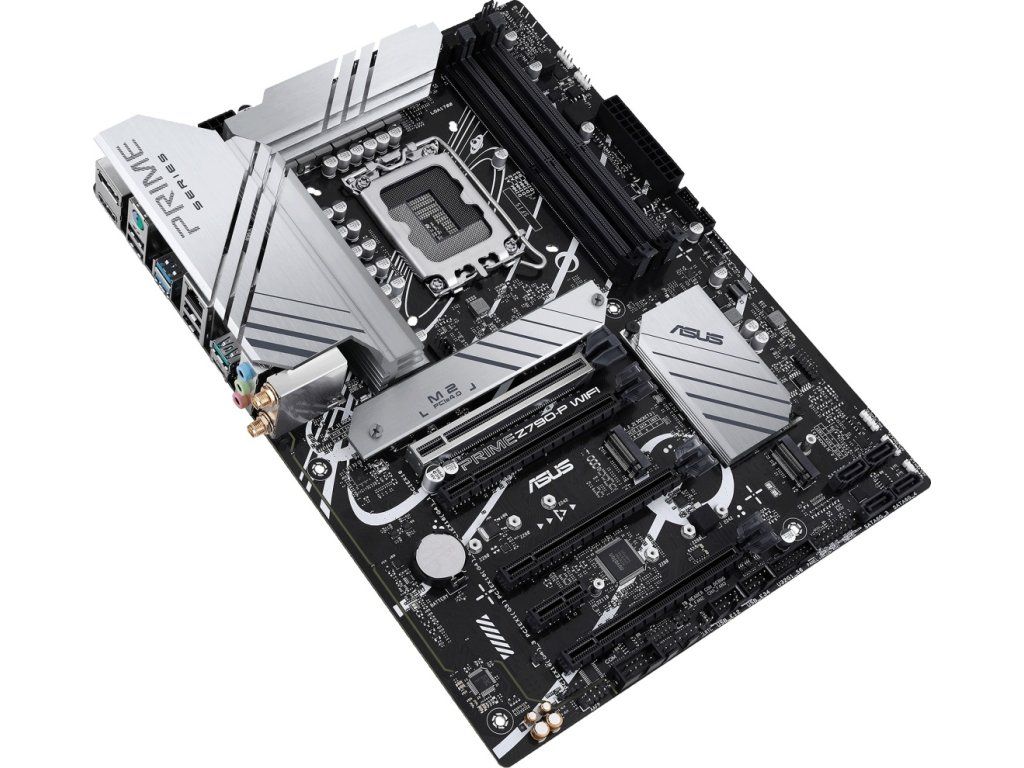

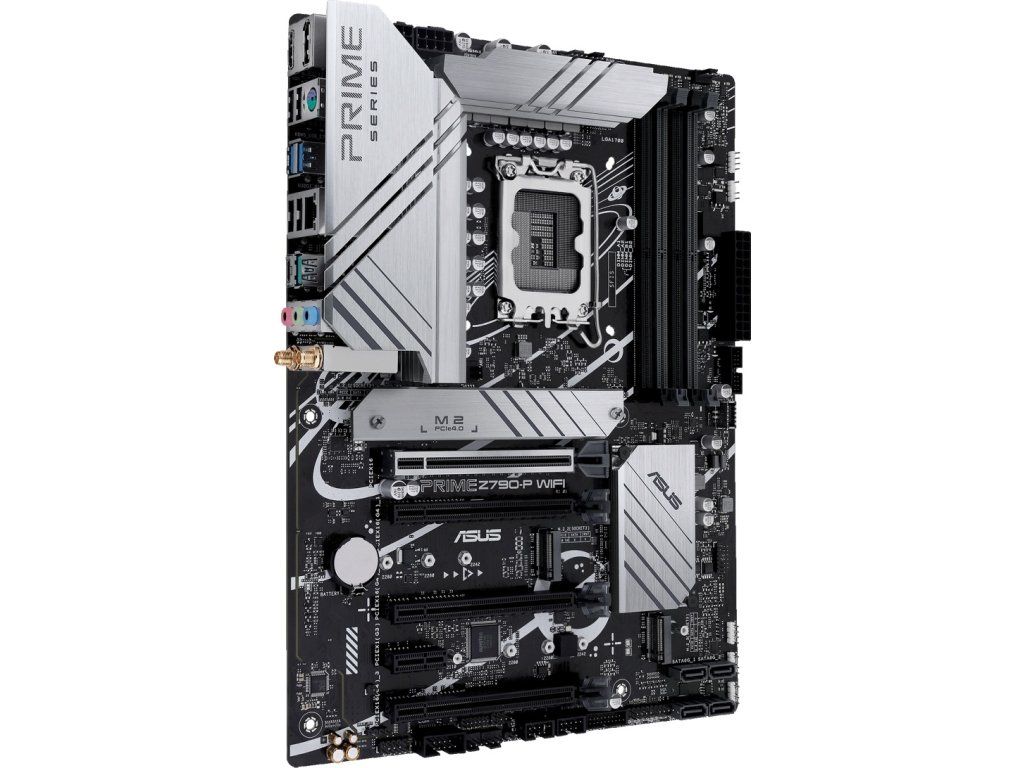

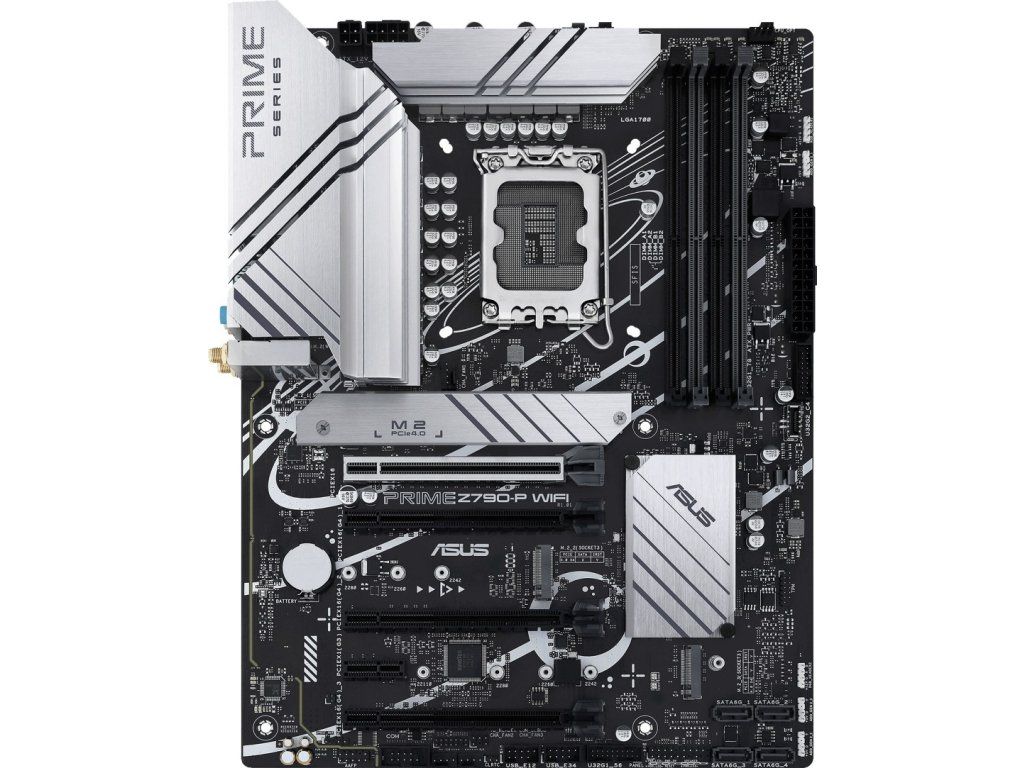

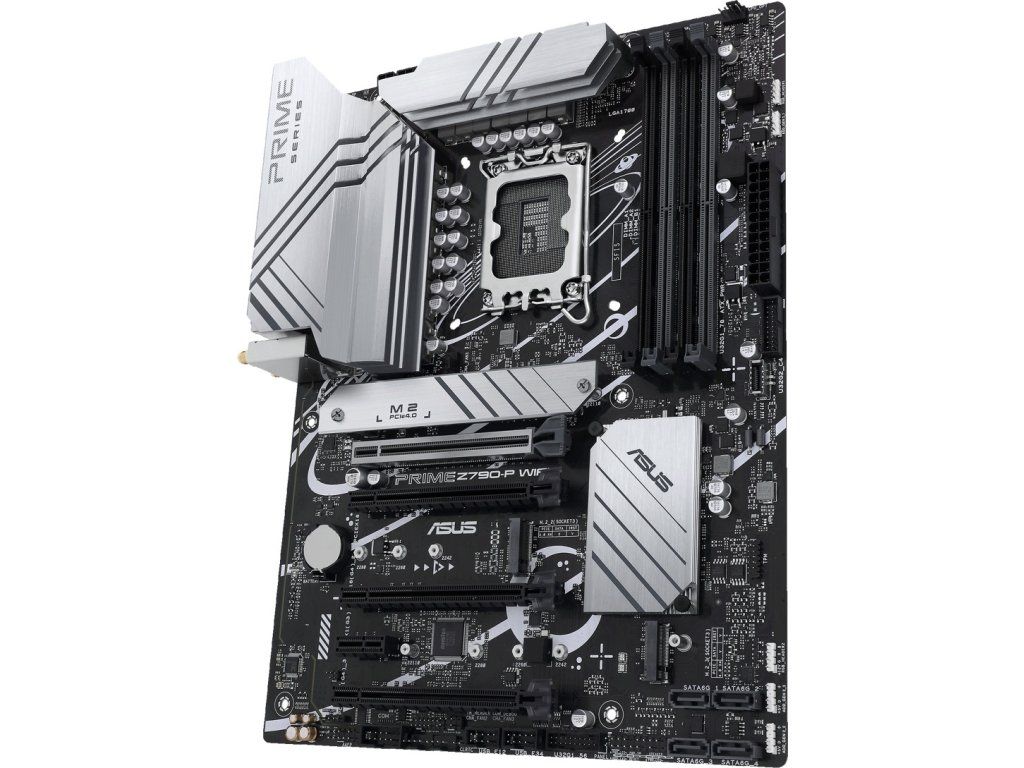

ASUS PRIME Z790-P WIFI / Intel Z790 / LGA1700 / 4x DDR5 / 3x M.2 / HDMI / DP / USB-C / WiFi / ATX

Detailní popis produktu

Chipset: Intel Z790

Rozměrový formát: ATX

Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Pozice na paměti: 4 x DIMM

Podpora pro paměti:

*4 x DIMM

*Max. 128GB

*DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800

/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

*Dual Channel Memory Architecture

*Supports Intel Extreme Memory Profile (XMP)

*OptiMem II

Max. velikost operační paměti: 128 GB

Grafické výstupy: ne (1x DisplayPort + 1x HDMI port)

Zvuková karta:

*Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

*1 x Realtek 2.5Gb Ethernet

*Wi-Fi 6

*2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

*Supports 2.4/5GHz frequency band

*Bluetooth v5.2

Rozšiřujicí sloty:

Intel 13th & 12th Gen Processors

*1 x PCIe 5.0 x16 slot

Intel Z790 Chipset

*3 x PCIe 4.0 x16 slots (support x4 mode)

*1 x PCIe 3.0 x1 slot

RAID řadič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

SATA:

*4 x SATA 6Gb/s ports

M.2:

Intel 13th & 12th Gen Processors

*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel Z790 Chipset

*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

*M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

USB: zadní USB - celkem 8, přední USB - celkem 9

ZADNÍ

*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

*1 x USB 3.2 Gen 2 port (1 x Type-A)

*2 x USB 3.2 Gen 1 ports (2 x Type-A)

*4 x USB 2.0 ports (4 x Type-A)

PŘEDNÍ

*1 x USB 3.2 Gen 2 connector (supports USB Type-C)

*2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Interní porty:

Fan and Cooling related

*1 x 4-pin CPU Fan header

*1 x 4-pin CPU OPT Fan header

*1 x 4-pin AIO Pump header

*3 x 4-pin Chassis Fan headers

Power related

*1 x 24-pin Main Power connector

*1 x 8-pin +12V Power connector

*1 x 4-pin +12V Power connector

Storage related

*3 x M.2 slots (Key M)

*4 x SATA 6Gb/s ports

USB

*1 x USB 3.2 Gen 2 connector (supports USB Type-C)

*2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

*3 x Addressable Gen 2 headers

*2 x Aura RGB headers

*1 x Clear CMOS header

*1 x COM Port header

*1 x Front Panel Audio header (AAFP)

*1 x S/PDIF Out header

*1 x SPI TPM header (14-1pin)

*1 x 20-5pin System Panel header

*1 x Thunderbolt (USB4) Header

Externí porty:

*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

*1 x USB 3.2 Gen 2 port (1 x Type-A)

*2 x USB 3.2 Gen 1 ports (2 x Type-A)

*4 x USB 2.0 ports (4 x Type-A)

*1 x DisplayPort

*1 x HDMI port

*1 x Wi-Fi Module

*1 x Realtek 2.5Gb Ethernet port

*3 x Audio jacks

*1 x PS/2 Keyboard/Mouse combo port

BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-P-WIFI/
