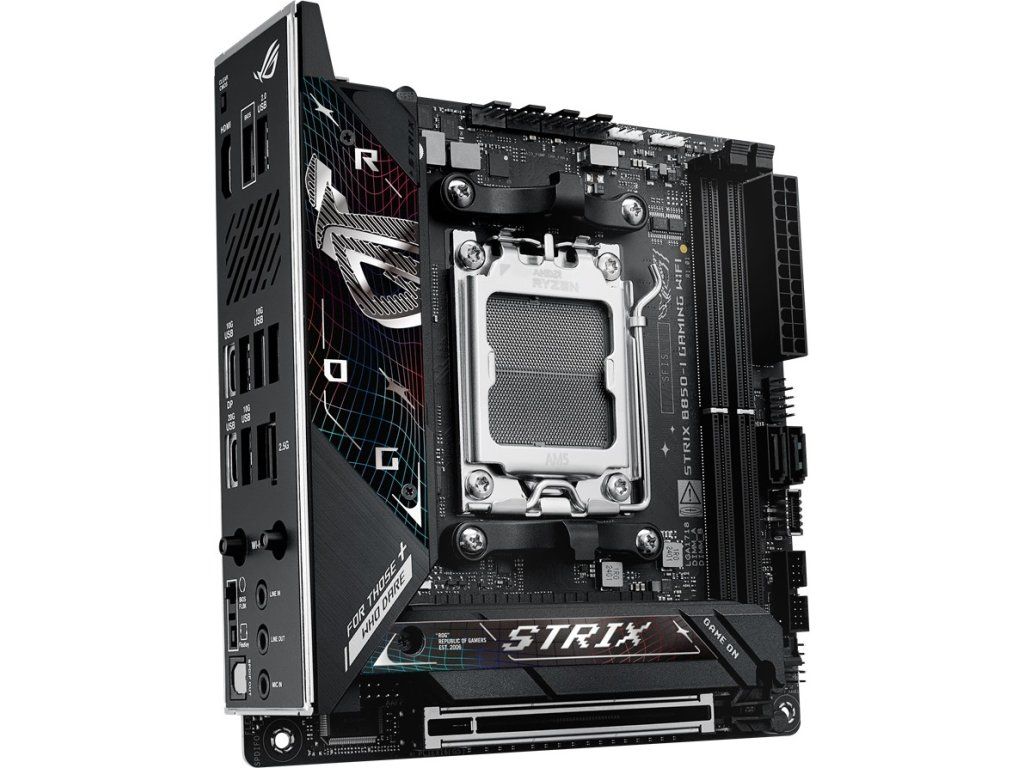

ASUS ROG STRIX B850-I GAMING WIFI

Detailní popis produktu

ROG STRIX B850-I Gaming WIFI

* ATX Form Factor

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B850

Paměť:

*2 x DIMM slot, max 96GB, DDR5

*Dvoukanálová paměťová architektura

*Podpora rozšířených profilů AMD pro přetaktování (EXPO™)

*Podpora modulů DIMM Flex

*Rozšířený profil paměti ASUS (AEMP)

*ECC a Non-ECC Un-buffered DIMM

Grafické porty:

*1 x HDMI™ port

*1 x USB 10Gbps ports support USB Type-C® display outputs

Rozšiřující sloty:

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

*1 x PCIe 5.0 x16 slot(s)

AMD Ryzen™ 8000 Series Desktop Processors*

*1 x PCIe 4.0 x16 slot(s)

Úložný prostor:

Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports

Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

*M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

*M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Ethernet:

*1 x Intel® 2.5Gb Ethernet

*ASUS LANGuard

Připojení a Bluetooth:

*Wi-Fi 7

*2x2 Wi-Fi 7 (802.11be)

*Supports 2.4/5/6GHz frequency band**

*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

*Bluetooth® v5.4***

USB:

Zadní USB (Total 8 ports)

*1 x USB 20Gbps port(s) (1 x USB Type-C®)

*5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)

*2 x USB 2.0 port(s) (2 x Type-A)

Přední USB (Total 5 ports)

*1 x USB 10Gbps

*1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

*1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports

*USB Type-C® power delivery output: max. 5V/3A

Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

*SupremeFX Shielding Technology

*Savitech SV3H712 AMP

*Rear optical S/PDIF out port

*Premium audio capacitors

*Unique de-pop circuit

*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

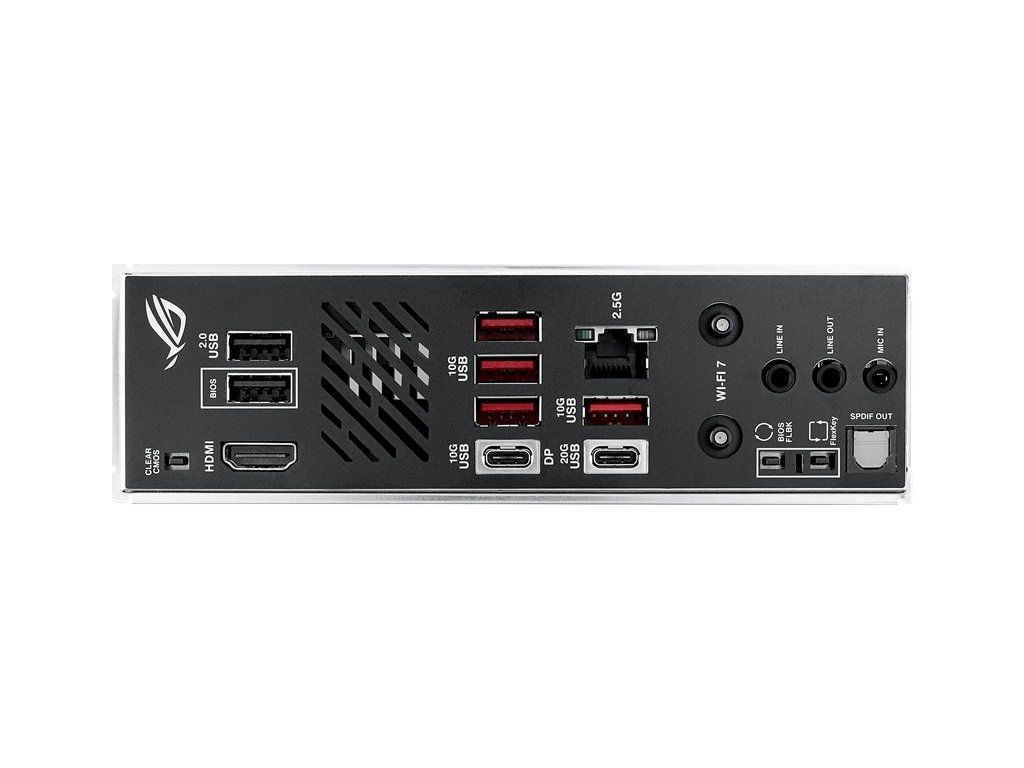

Vstupy/výstupy zadního panelu:

*1 x USB 20Gbps port(s)

*5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode)

*2 x USB 2.0 port(s) (2 x Type-A)

*1 x HDMI™ port

*1 x Wi-Fi module

*1 x Intel® 2.5Gb Ethernet port

*3 x Audio jacks

*1 x Optical S/PDIF out port

*1 x BIOS FlashBack™ button

*1 x Clear CMOS button

*1 x FlexKey button

Interní vstupy/výstupy:

Ventilátory a chlazení:

*1 x 4-pin CPU Fan header(s)

*1 x 4-pin AIO Pump header(s)

*1 x 4-pin Chassis Fan header(s)

*1 x Extra Flow Fan header(s)

Napájení:

*1 x 24-pin Main Power connector

*1 x 8-pin +12V CPU Power connector

Úložiště:

*2 x M.2 slots (Key M)

*2 x SATA 6Gb/s ports

USB:

*1 x USB 10Gbps connector (support(s) USB Type-C® )

*1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

*1 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

Různé:

*2 x Addressable Gen 2 header(s)

*1 x CPU Over voltage jumper

*1 x Front Panel Audio header (F_AUDIO)

*1 x 10-1 pin Front System Panel header

*1 x Thermal Sensor header

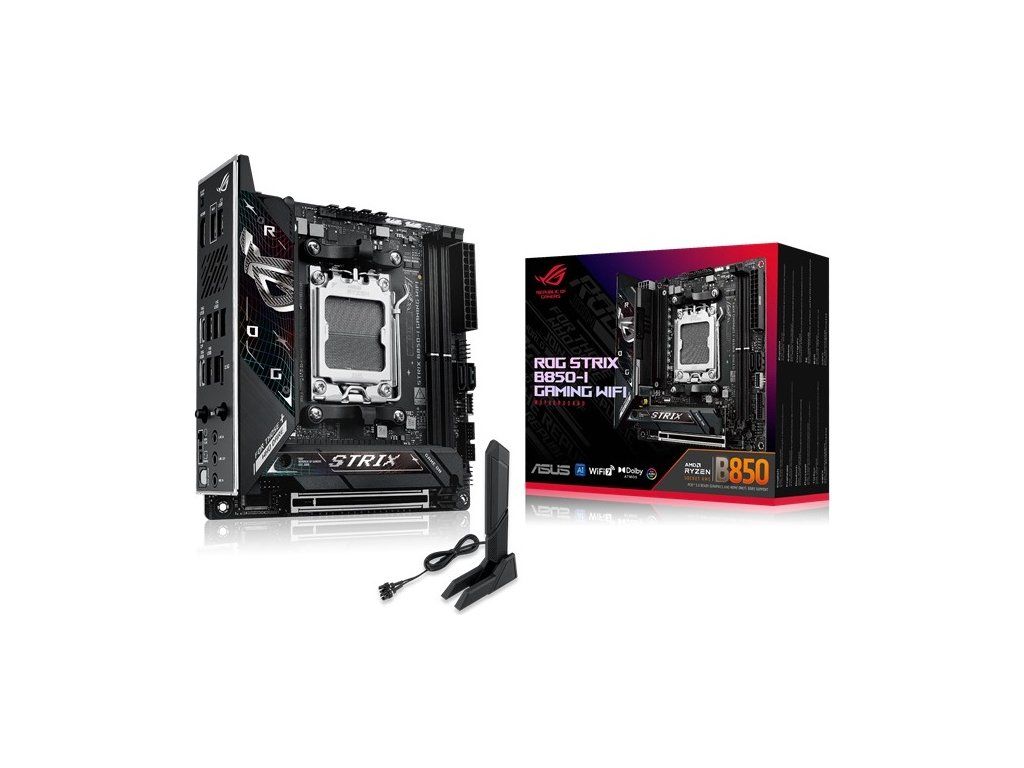

Příslušenství:

Kabely:

*1 x Panel cable

*1 x ROG USB2.0 splitter cable

*2 x SATA 6Gb/s cables

Různé:

*1 x ASUS WiFi Q-Antenna

*1 x Cable ties package

*1 x M.2 backplate Q-Latch package(s)

*1 x M.2 Q-Slide package

*1 x ROG key chain

*1 x M.2 backplate rubber package(s)

*1 x Screw package(s) for M.2 SSD

Dokumenty:

*1 x Quick start guide
