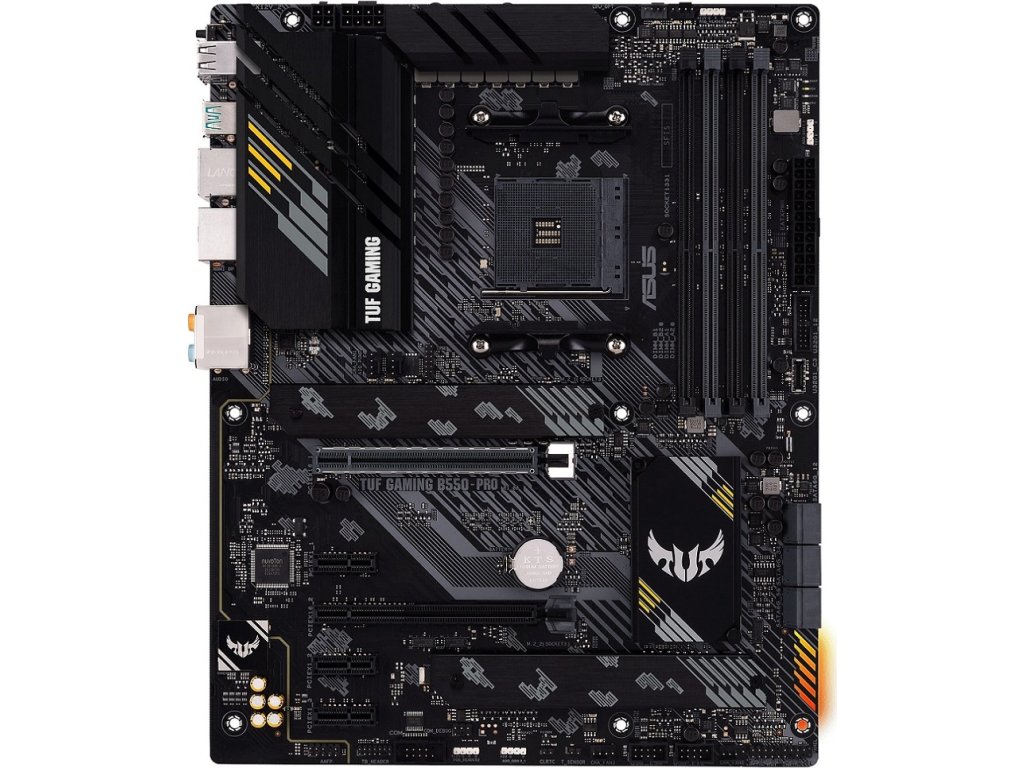

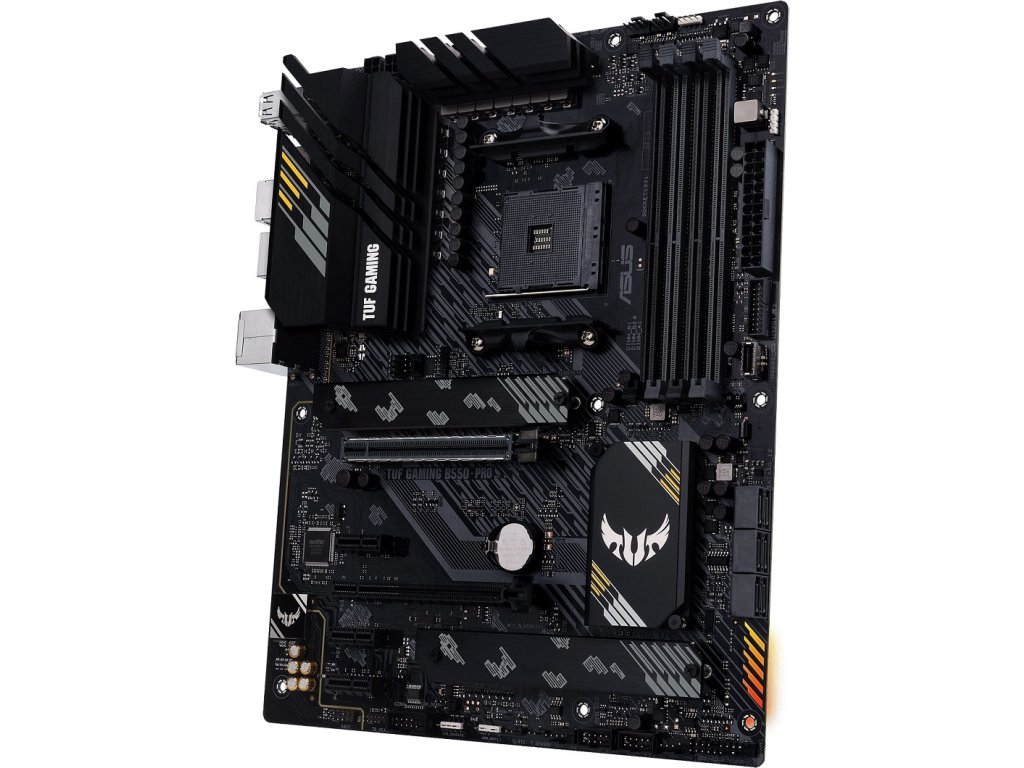

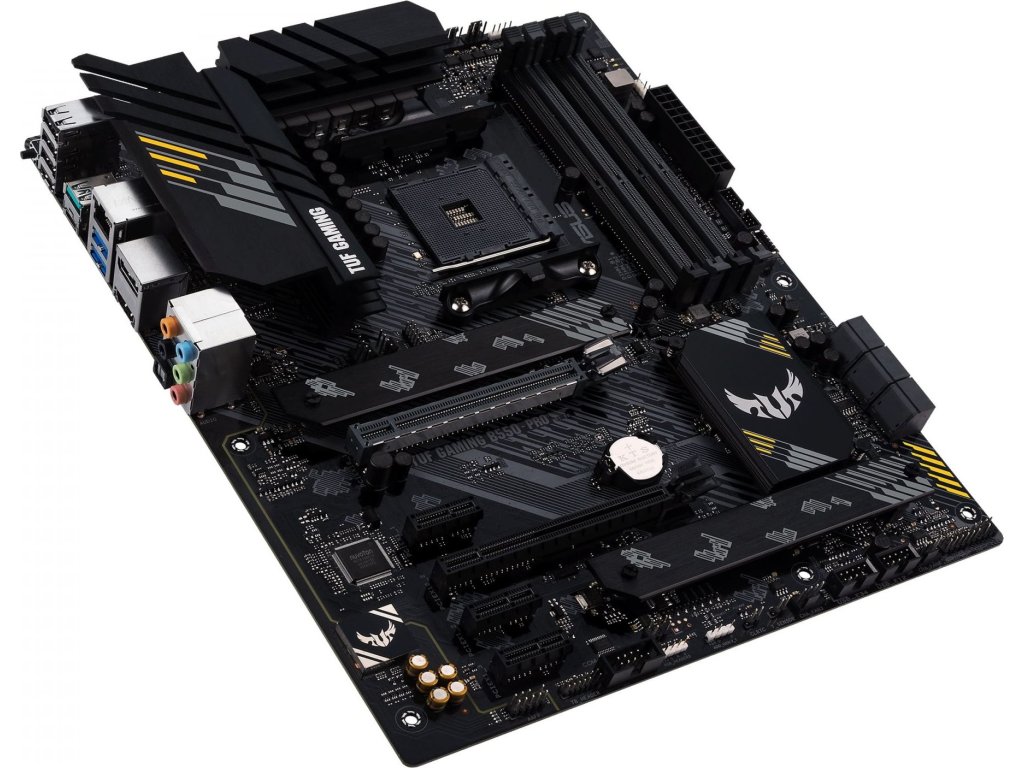

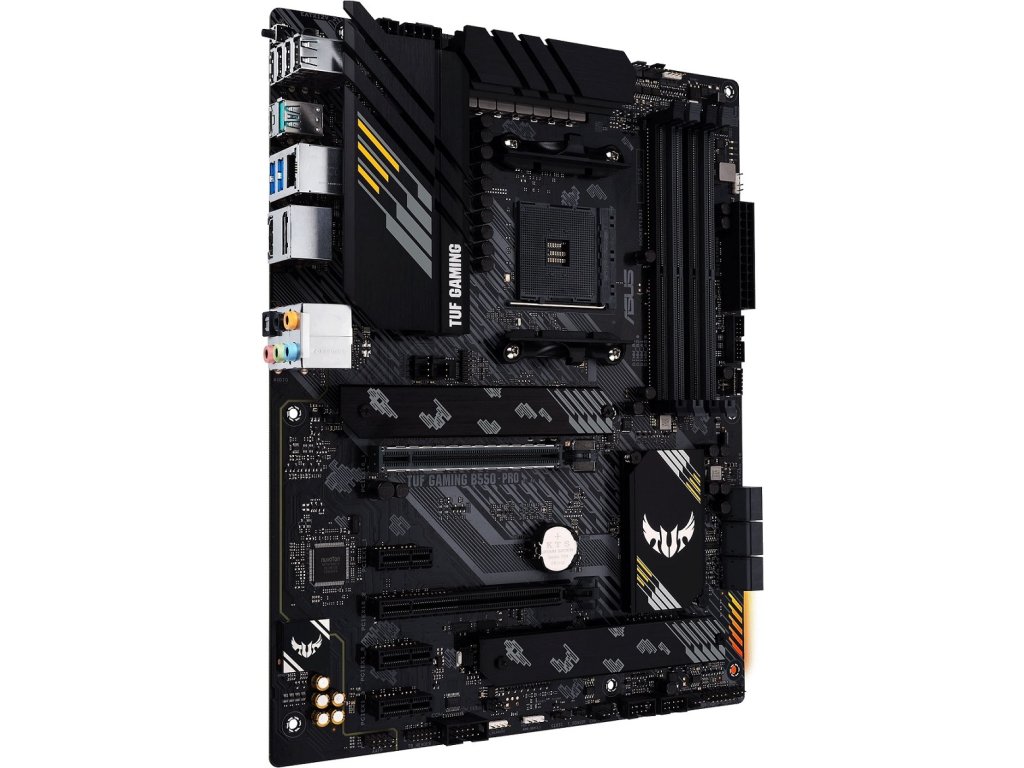

ASUS TUF GAMING B550-PRO/AM4/ATX

Detailní popis produktu

Chipset: AMD B550

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)

Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM

Podpora pro paměti:

*AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

*AMD Ryzen™ 4000 G-Series Processors 5100(O.C)/4866(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: DDR4

*Dual Channel Memory Architecture

*ECC Memory (ECC mode) support varies by CPU

Grafické výstupy:

*Integrated Graphics Processor (na základě procesoru)

Multi GPU: AMD 2-Way CrossFireX Technology

Zvuková karta:

*Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

*Realtek RTL8125B 2.5Gb Ethernet (TUF LANGuard)

Rozšiřující sloty:

*AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

*1x PCIe 4.0 x16 (x16 mode)

*AMD Ryzen™ 4000 G-Series Processors

*1x PCIe 3.0 x16 (x16 mode)

*AMD B550 Chipset

*1x PCIe 3.0 x16 (x4 mode)

*3x PCIe 3.0 x1

RAID řadič: 0, 1, 10

SATA:

*6x SATA 6Gb/s

M.2:

*AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

*1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

*AMD Ryzen™ 4000 G-Series Processors :

*1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

*AMD B550 Chipset :

*1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

USB:

*zadní USB porty ( celkem 8 )

*2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)

*2x USB 3.2 Gen 1 port(s)(2 x Type-A)

*4x USB 2.0 port(s)(4 x Type-A)

*přední USB porty ( celkem 7 )

*3x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)

*4x USB 2.0 port(s)(4 x Type-A)

Interní porty:

*1x CPU Fan connector(s)

*1x CPU OPT Fan connector(s)

*3x Chassis Fan connector(s)

*1x AIO_PUMP connector

*2x Aura RGB Strip Headers

*2x Addressable Gen 2 header(s)

*1x USB 3.2 Gen 1 front panel TypeC™ connector

*1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

*2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

*1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

*1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

*1x M.2 with E key for Wi-Fi module

*1x SPI TPM header

*6x SATA 6Gb/s connector(s)

*1x Thunderbolt header(s)

*1x 24-pin EATX Power connector(s)

*1x 8-pin ATX 12V Power connector(s)

*1x 4-pin ATX 12V Power connector(s)

*1x Front panel audio connector(s) (AAFP)

*1x Thermal sensor connector(s)

*1x Clear CMOS jumper(s)

*1x System panel connector

*1x COM port header

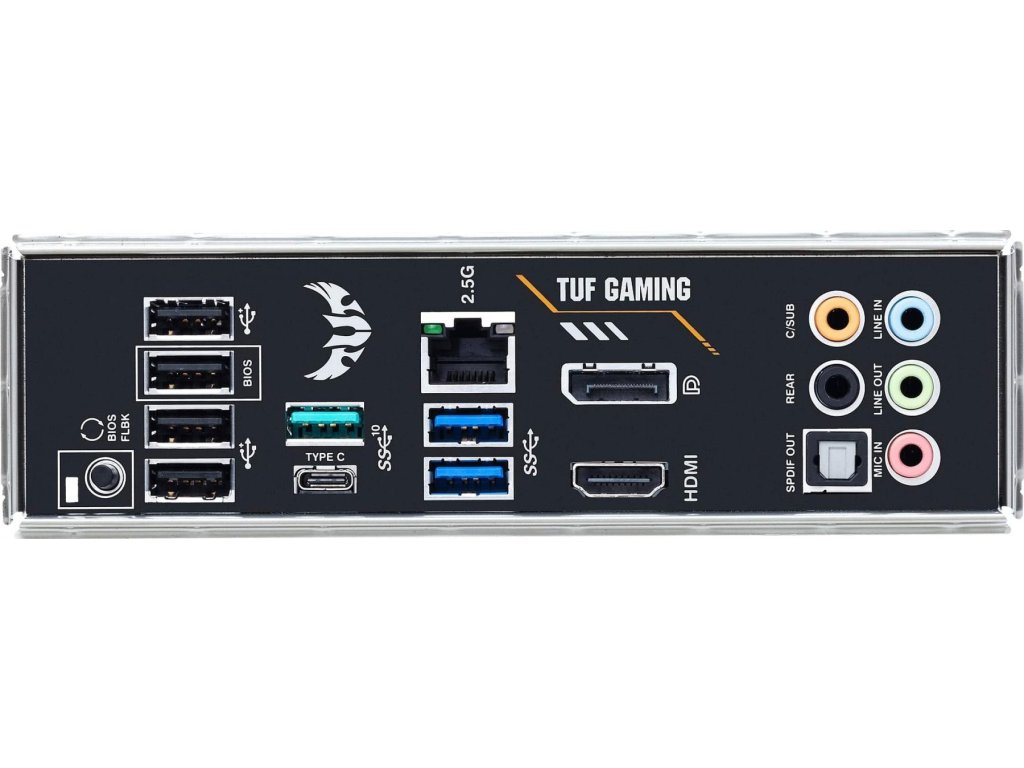

Externí porty:

*1x DisplayPort

*1x HDMI

*1x LAN (2.5G) port(s)

*2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)

*2x USB 3.2 Gen 1 (blue) Type-A

*4x USB 2.0 (one port can be switched to USB BIOS FlashBack™)

*1x Optical S/PDIF out

*5x Audio jack(s)

*1x BIOS FlashBack™ Button(s)

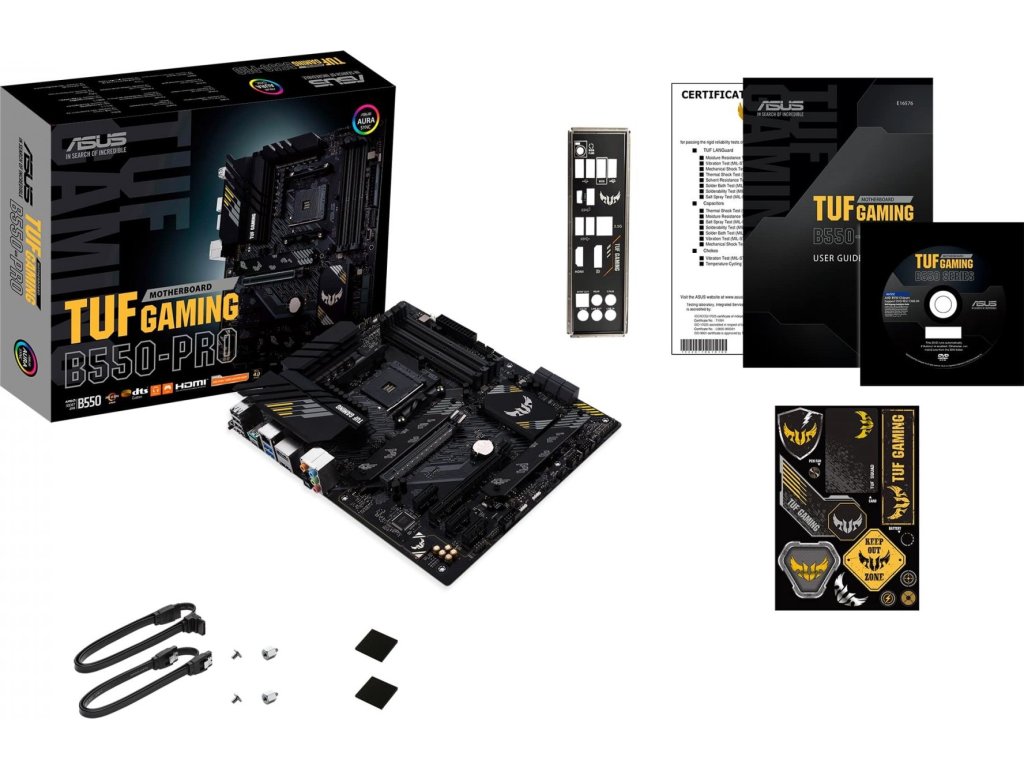

Obsah balení:

*User´s manual

*I/O Shield

*2x SATA 6Gb/s cable(s)

*1x Supporting DVD

*1x TUF Gaming Sticker

*1x TUF Certification card(s)

*1x M.2 SSD screw package(s)

*1x M.2 Rubber Package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
