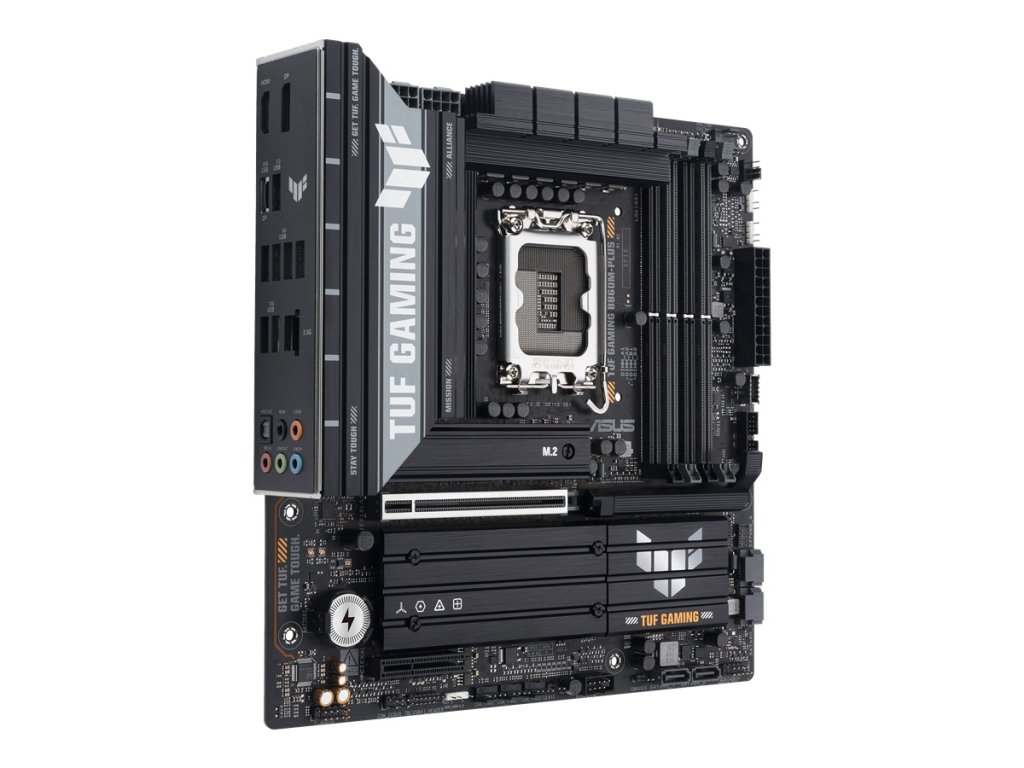

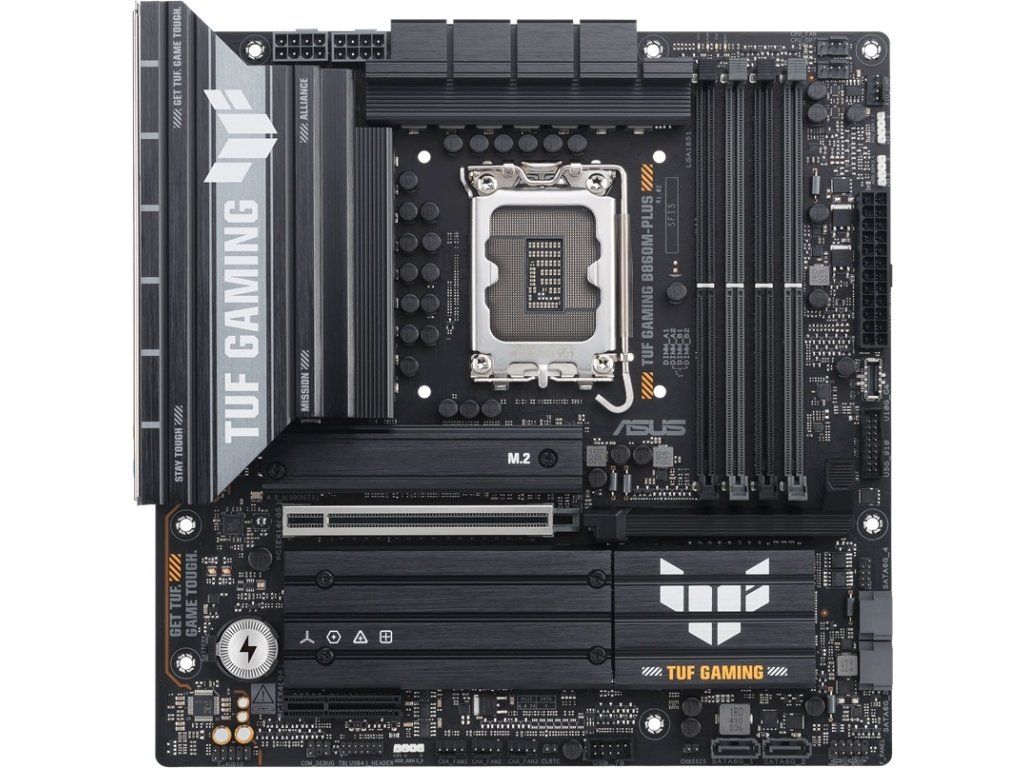

ASUS TUF GAMING B860M-PLUS

Detailní popis produktu

ASUS TUF GAMING B860M-PLUS

* mATX Form Factor

CPU: Support Intel® Core™ Ultra Processors (Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Paměť: 4 x DIMM slots, max. 192GB, DDR5 - Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

*Dvoukanálová paměťová architektura

*Osazení DIMM

*Podporuje paměťový modul Intel® Extreme Memory Profile (XMP)

*ASUS Enhanced Memory Profile III(AEMPIII)

Grafické porty:

*1 x DisplayPort**

*1 x HDMI™ port***

*1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Rozšiřující sloty:

Intel® Core™ Ultra Processors(series 2)

*1 x PCIe 5.0 x16 slot

Intel® B860 Chipset

*1 x PCIe 4.0 x4 slot

Úložný prostor:

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors(series 2)

*M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

Intel® B860 Chipset

*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

*M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

*4 x SATA 6Gb/s ports

Ethernet:

*1 x Realtek 2.5Gb Ethernet

*TUF LANGuard

USB:

Zadní USB (Total 7 ports)

*1 x USB 20Gbps port (1 x USB Type-C®)

*2 x USB 10Gbps ports (2 x Type-A)

*4 x USB 5Gbps ports (4 x Type-A)

*1 x USB 2.0 port (1 x Type-A)

Přední USB (Total 7 ports)

*1 x USB 10Gbps connector (supports USB Type-C®)

*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

*1 x USB 2.0 headers support 2 additional USB 2.0 ports

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Features

*Audio Shielding

*Rear optical S/PDIF out port

*Premium audio capacitors

*Dedicated audio PCB layers

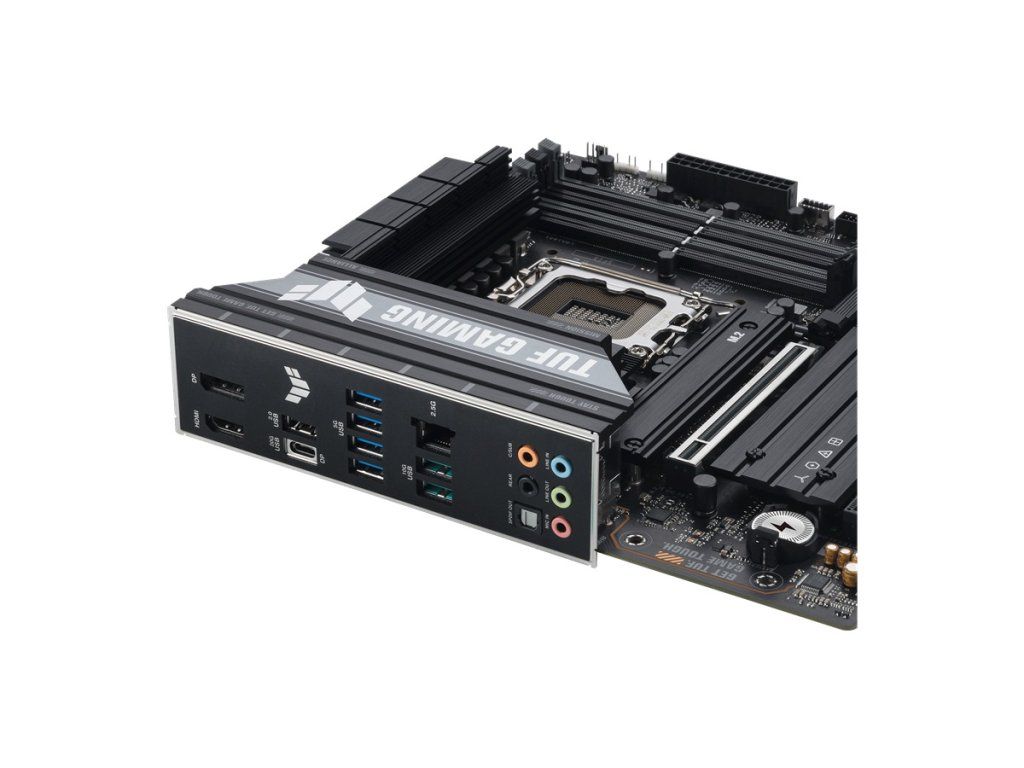

Vstupy/výstupy zadního panelu:

*1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)

*2 x USB 10Gbps ports (2 x Type-A)

*4 x USB 5Gbps ports (4 x Type-A)

*1 x USB 2.0 port (1 x Type-A)

*1 x DisplayPort

*1 x HDMI™ port

*1 x Realtek 2.5Gb Ethernet port

*5 x Audio jacks

*1 x Optical S/PDIF out port

Interní vstupy/výstupy:

Ventilátory a chlazení:

*1 x 4-pin CPU Fan header

*1 x 4-pin CPU OPT Fan header

*1 x 4-pin AIO Pump header

*3 x 4-pin Chassis Fan headers

Napájení:

*1 x 24-pin Main Power connector

*2 x 8-pin +12V CPU Power connectors

Úložiště:

*3 x M.2 slots (Key M)

*4 x SATA 6Gb/s ports

USB:

*1 x USB 10Gbps connector (supports USB Type-C® )

*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

*1 x USB 2.0 header supports 2 additional USB 2.0 ports

Různé:

*3 x Addressable Gen 2 headers

*1 x Clear CMOS header

*1 x Chassis Intrusion header

*1 x Front panel audio header (F_AUDIO)

*1 x 10-1 pin Front System Panel header

*1 x Thunderbolt™ (USB4®) header

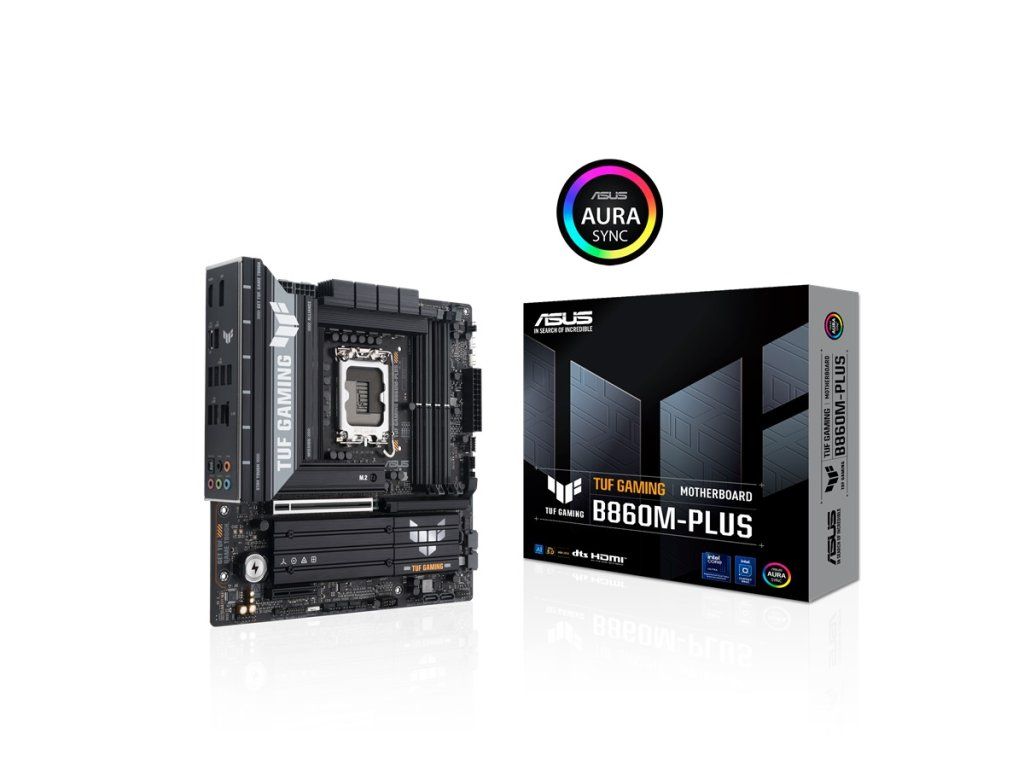

Příslušenství:

Kabely:

*2 x SATA 6Gb/s cables

Různé:

*2 x M.2 Rubber Packages

*1 x TUF Gaming sticker

*1 x Screw package for M.2 SSD

Dokumenty:

*1 x Quick start guide
