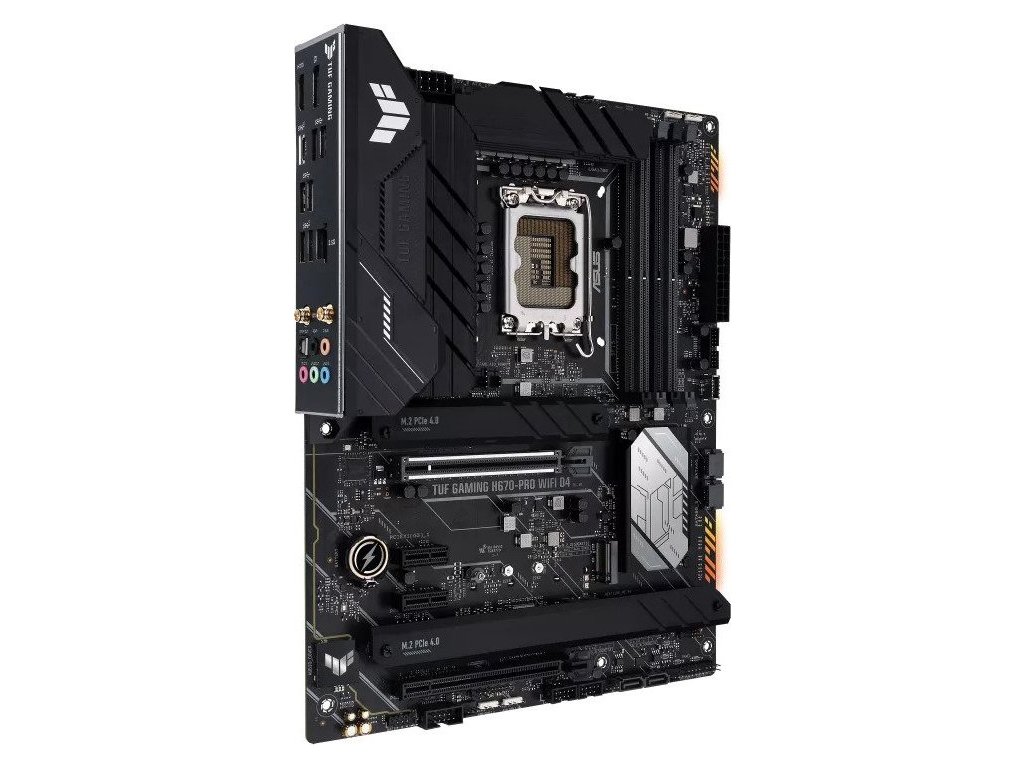

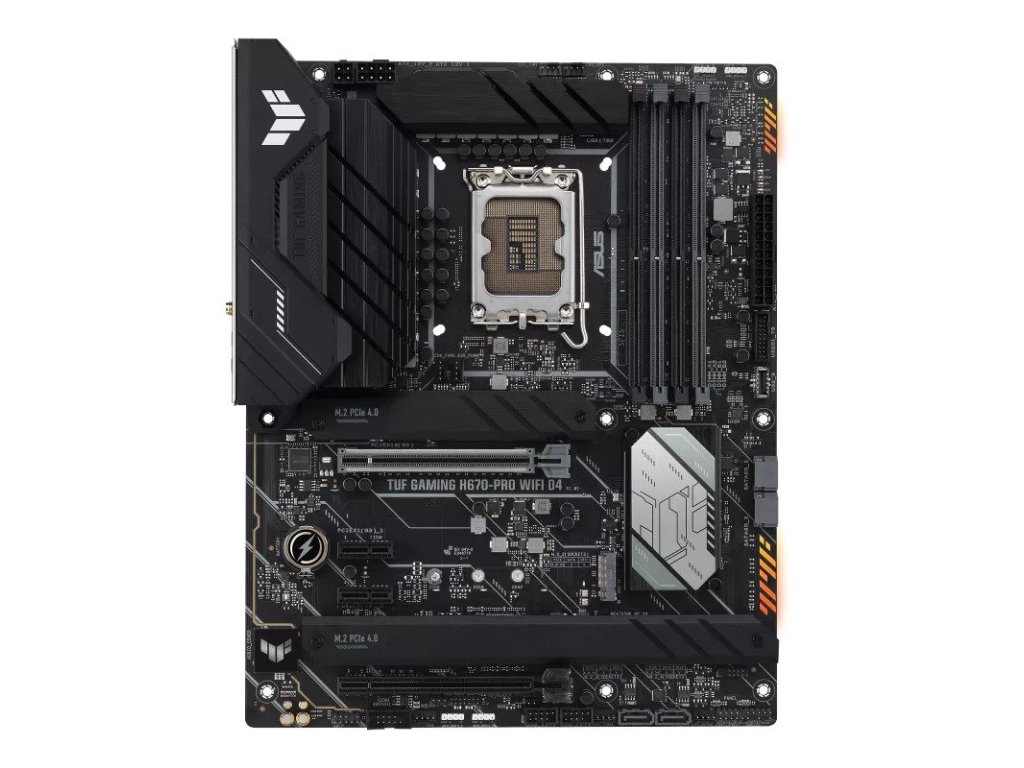

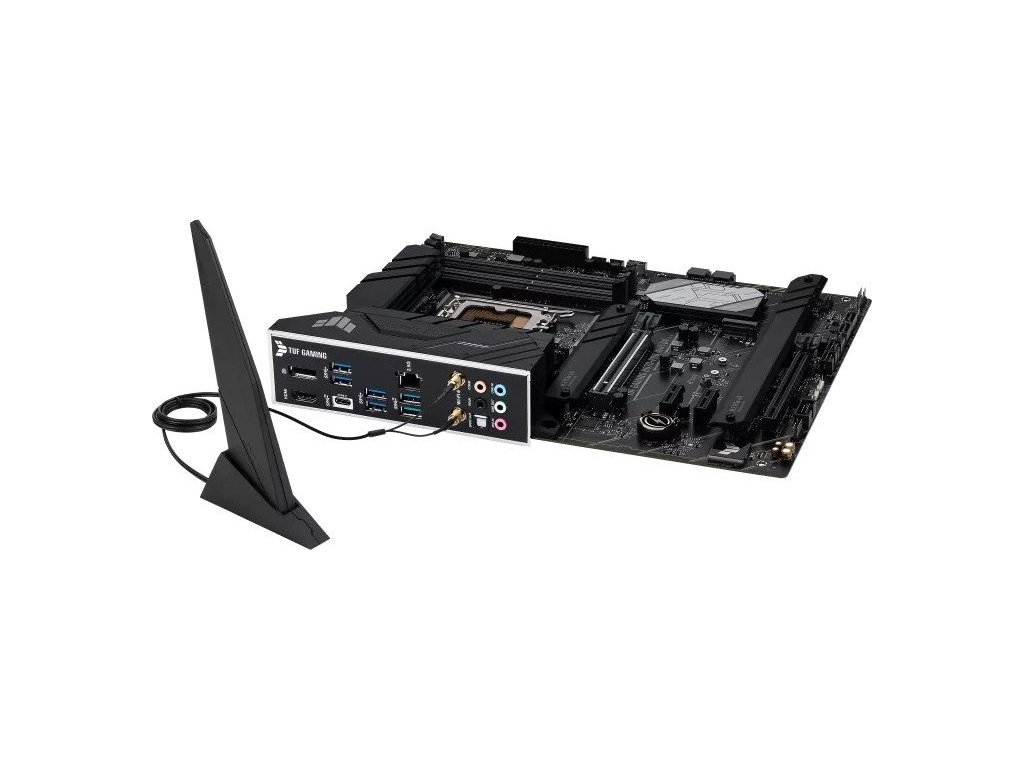

ASUS TUF Gaming H670-PRO WIFI D4/LGA 1700/ATX

Detailní popis produktu

Chipset: H670

Rozměrový formát: ATX (30.5cm x 24.4cm)

Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture

Podpora pro paměti: DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: XMP

Grafické výstupy: (na základě procesoru)

*1 x DisplayPort

*1 x HDMI port

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

*1 x Intel 2.5Gb Ethernet

*Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

*Bluetooth v5.2

Rozšiřující sloty:

*1 x PCIe 5.0 x16 slot

*1 x PCIe 3.0 x16 slot (supports x4 mode)

*2 x PCIe 3.0 x1 slots

SATA: 4 x SATA 6Gb/s ports

M.2: 4 x M.2 slots

USB:

*Interní:

*1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support additional 4 USB 2.0 ports

*Externí:

*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

*2 x USB 3.2 Gen 2 ports (2 x Type-A)

*4 x USB 3.2 Gen 1 ports (4 x Type-A )

Interní porty:

*Fan and Cooling related

*1 x 4-pin CPU Fan header

*1 x 4-pin CPU OPT Fan header

*1 x 4-pin AIO Pump header

*4 x 4-pin Chassis Fan headers

*Power related

*1 x 24-pin Main Power connector

*1 x 8-pin +12V Power connector

*1 x 4-pin +12V Power connector

*Storage related

*4 x M.2 slots (Key M)

*4 x SATA 6Gb/s ports

*USB

*1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support additional 4 USB 2.0 ports

*Miscellaneous

*3 x Addressable Gen 2 headers

*1 x AURA RGB header

*1 x Clear CMOS header

*1 x COM Port header

*1 x Front Panel Audio header (AAFP)

*1 x 20-3 pin System Panel header with Chassis intrude function

*1 x Thunderbolt header

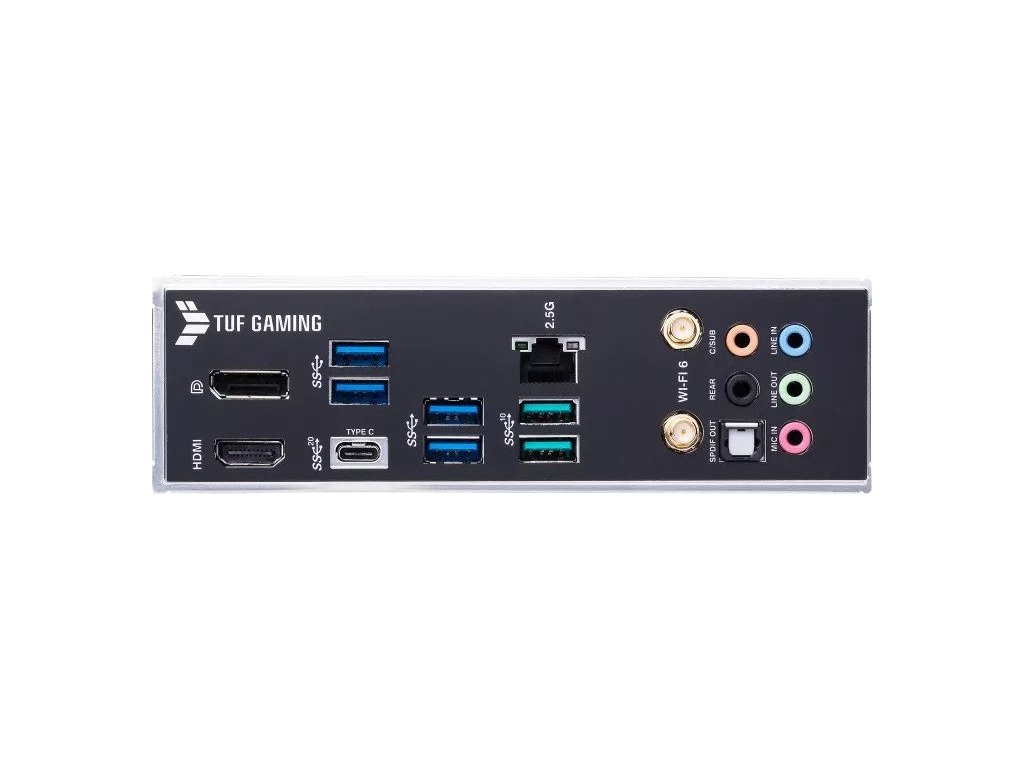

Externí porty:

*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

*2 x USB 3.2 Gen 2 ports (2 x Type-A)

*4 x USB 3.2 Gen 1 ports (4 x Type-A )

*1 x DisplayPort

*1 x HDMI port

*1 x Wi-Fi Module

*1 x Intel 2.5Gb Ethernet port

*5 x Audio jacks

*1 x Optical S/PDIF out port

BIOS: UEFI AMI BIOS, 192 (128+64) Mb Flash ROM
