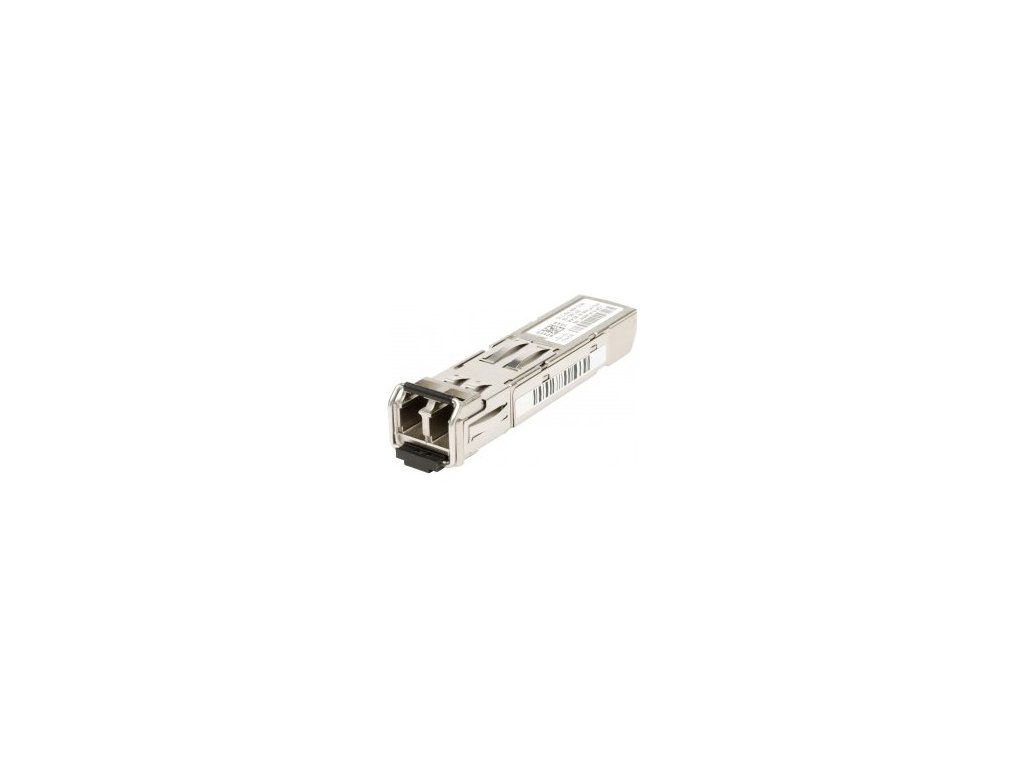

Cisco GLC-SX-MMD, 1000BASE-SX SFP

Detailní popis produktu

1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector

1000BASE-SX SFP for Multimode Fiber Only

The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 µm multimode fiber links up to 550 m and on 62.5 µm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 µm multimode fiber cable.

Specifications

Part Number

· GLC-SX-MMD

Device Type

· Cisco SFP

Package

· SFP

Data Rate

· 1.25/1.0625Gbps

Wavelength

· 850nm

Distance/Power Budget

· 550m

Optical Components

· LD: VCSEL

· PD: PIN

Output Power

· -9~-4dBm

Receiver Sensitivity

· -17dBm

Power Supply Voltage

· 3.3V

Connector

· Dual LC

Fiber Type

· MMF

Operating Temperature

· -10~80 °C

DDMI

· With

Application

· Gigabit Ethernet

Compatiblity

· 100% Cisco Compatible
