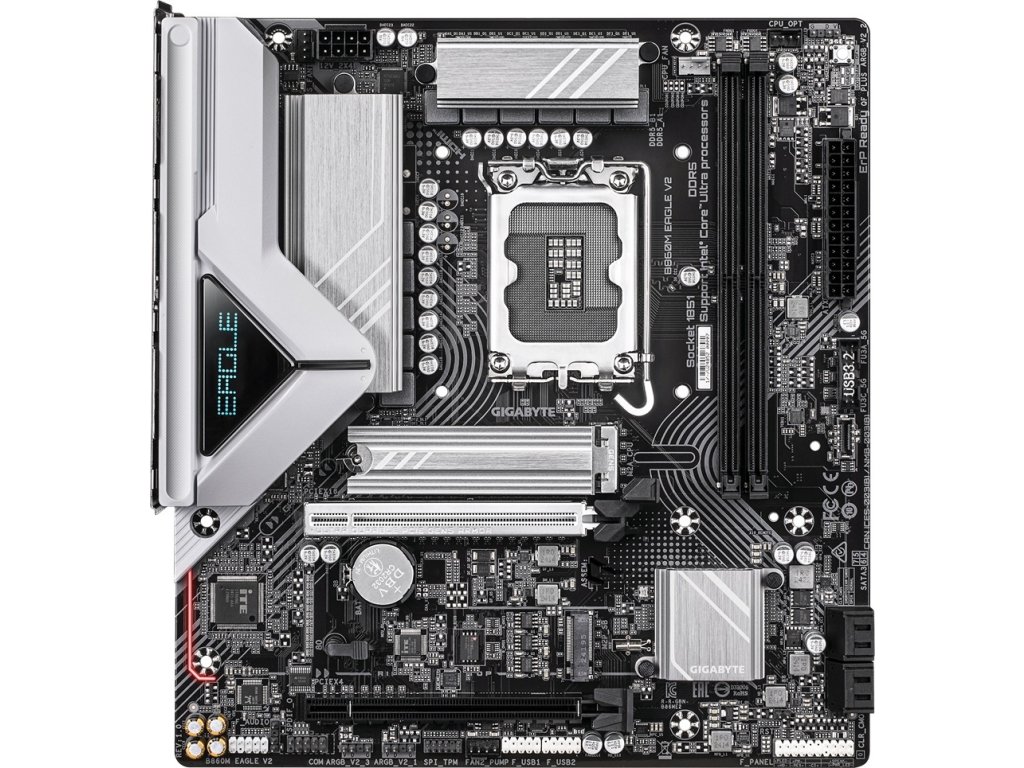

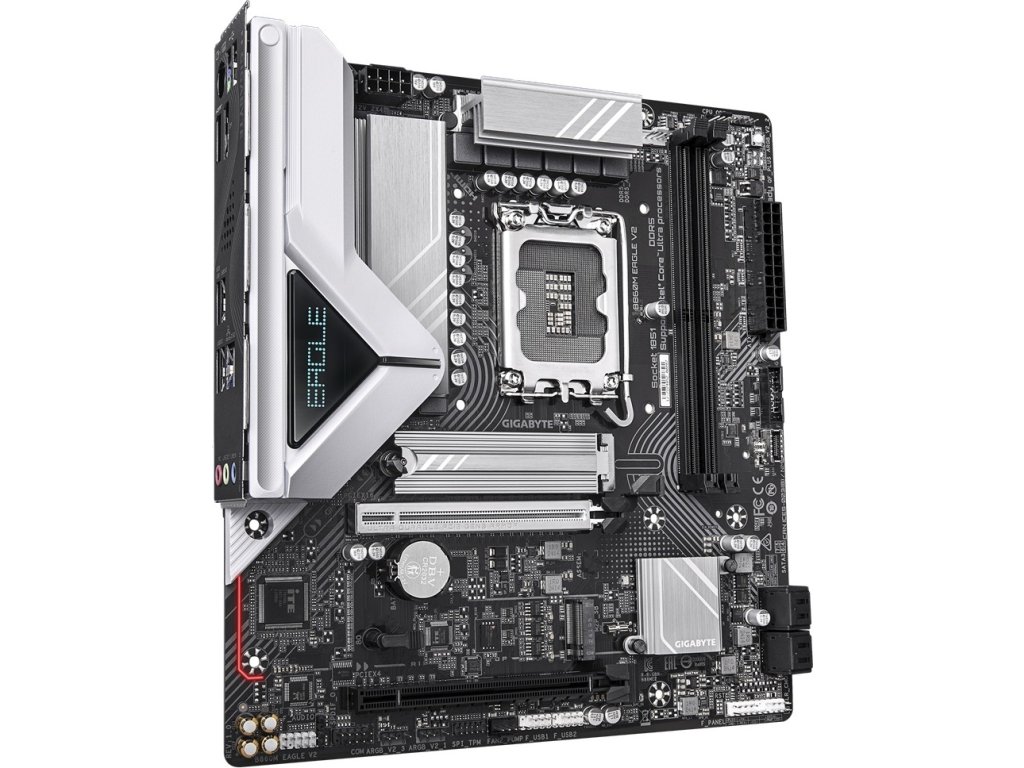

Gigabyte B860M EAGLE V2/LGA 1851/mATX

Detailní popis produktu

GIGABYTE B860M EAGLE V2

Chipset: Intel B860 Express Chipset

Rozměrový formát: Micro ATX Form Factor; 24.4cm x 22.5cm

Podpora pro procesory: Intel ® Core™ Ultra

Patice procesoru: LGA1851

Paměť:

* 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

*Dual channel memory architecture

*Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

*Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

*Support for Extreme Memory Profile (XMP) memory modules

Grafické výstupy:

* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3

* 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version

Zvuková karta:

*Realtek® Audio CODEC

*High Definition Audio

*2/4/5.1/7.1-channel

*Support for S/PDIF Out

Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rozšiřující sloty:

* 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot

* 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Úložný prostor:

* 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)

* 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)

* 4 x SATA 6Gb/s connectors

RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB:

* 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

* 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

* 3 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

* 4 x USB 2.0/1.1 ports available through the internal USB headers

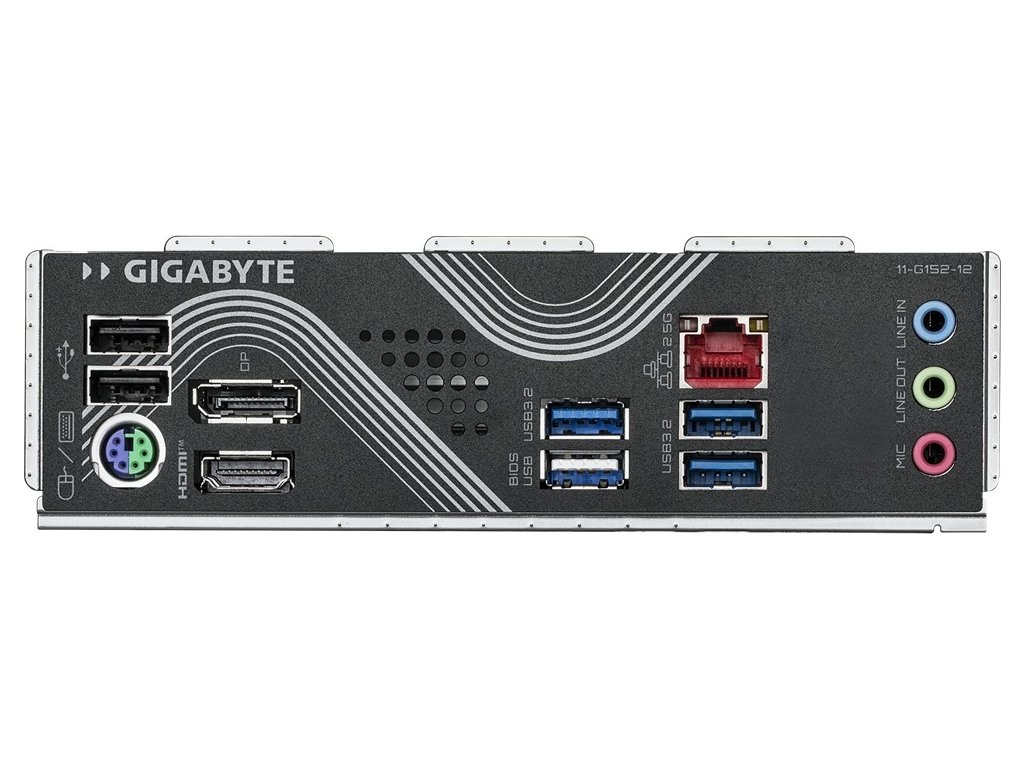

Porty na zadním panelu:

* 1 x PS/2 keyboard/mouse port

*1 x HDMI por*

*1 x DisplayPort*

*3 x USB 3.2 Gen 1 ports

*3 x USB 2.0/1.1 ports

*1 x RJ-45 port

*3 x audio jacks

Interní porty:

Napájení

* 1 x 24-pin ATX main power connector

*1 x 8-pin ATX 12V power connector

Související s ventilátorem a chlazením

* 1 x CPU fan header

*1 x CPU fan/water cooling pump header

*1 x system fan header

*1 x system fan/water cooling pump header

Související s úložištěm

* 2 x M.2 Socket 3 connectors

*4 x SATA 6Gb/s connectors

USB

* 1 x USB Type-C® header, with USB 3.2 Gen 1 support

*1 x USB 3.2 Gen 1 header

*2 x USB 2.0/1.1 headers

Ostatní

* 3 x addressable RGB Gen2 LED strip headers

*1 x front panel header

*1 x front panel audio header

*1 x S/PDIF Out header

*1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

*1 x serial port header

*1 x Q-Flash Plus button

*1 x reset jumper

*1 x Clear CMOS jumper

BIOS:

*1 x 256 Mbit flash

*Use of licensed AMI UEFI BIOS

*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp
