TP-Link TL-SG108 8x Gigabit Desktop Switch
Kód: AT-51722222Detailní popis produktu
8-Port 10/100/1000Mbps Desktop Switch
OVERVIEW
The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.
FEATURES
• Innovative energy-efficient technology saves power up to 72%
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Steel design, desktop or wall-mounting design
• Supports QoS (IEEE 802.1p) function
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 9K Jumbo frame improves performance of large data transfers
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
• Fanless design ensures quiet operation

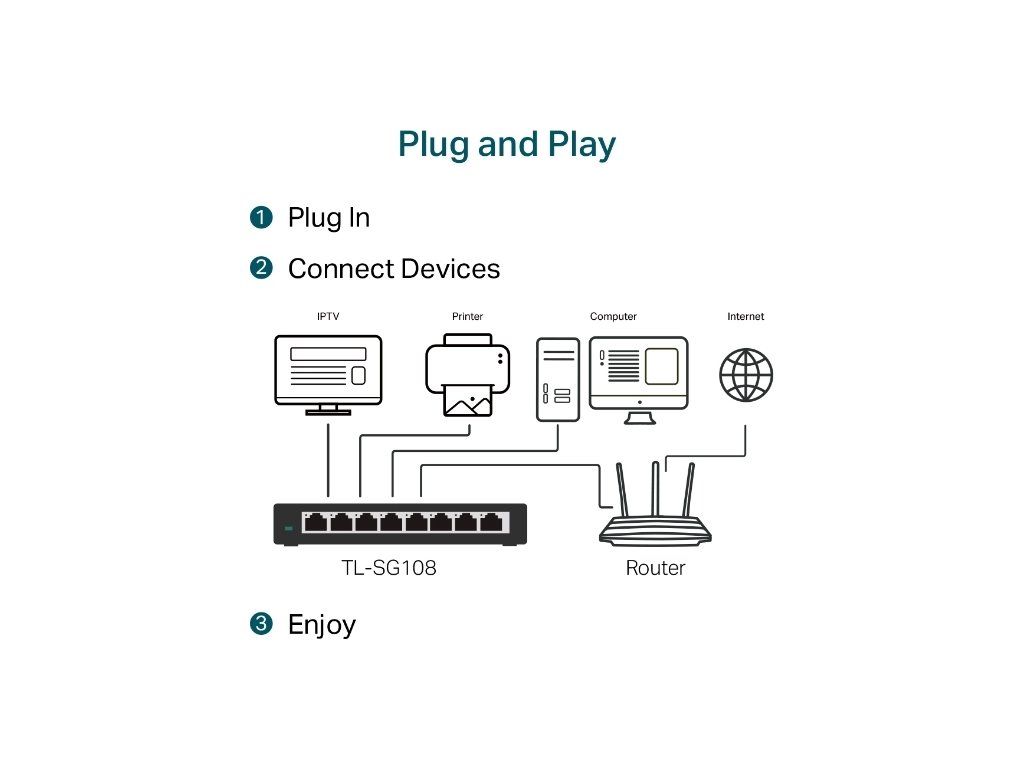

• Plug and Play design simplifies installation
HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3/802.3u/ 802.3ab/ 802.3x
• CSMA/CD
Interface
• 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
External Power Supply
• 100-240VAC, 50/60Hz
Dimensions (W X D X H)
• 158 x 101 x 25 mm
Fan Quantity
• Fanless
LED Indicator
• System Power
• Link, Speed and activity indicators per port built into each RJ-45 port
SOFTWARE FEATURES
Advanced Features
• Green Technology,saving power up to 72%
• 802.3X Flow Control
• Supports QoS (IEEE802.1P)
Transfer Method
• Store and Forward
OTHERS
Certification
• CE, FCC ,RoHS
Package Contents
• 8-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• User Guide
System Requirements
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, Mac® OS, NetWare®, UNIX® or Linux.
Související odkazy
Související dokumenty
Doplňkové parametry
| Kategorie: | Kabely PC a sítě |
|---|---|
| Záruka: | 60 |
| Hmotnost: | 0.528 kg |
| EAN: | 6935364021153 |
| Hloubka jedn. balení: | 9.4 |
| Hmotnost jedn. balení: | 0.528 |
| Hmotnost kartonu: | 15.100 |
| Kód výrobce: | TL-SG108 |
| Management: | Unmanaged switch |
| Obsahuje switch: | Ano |
| Počet kusů jedn. balení: | 1 |
| Počet kusů v kartonu: | 24 |
| Počet LAN portů: | 8 |
| POE: | Ne |
| Rozměr xyz jedn. balení: | 13.2x19.3x9.4 |
| Rozměr xyz kartonu: | 43x36x37 |
| Rychlost LAN max.: | 1 Gbps |
| Šířka jedn. balení: | 13.2 |
| Typ balení jedn. balení: | Balitelné |
| Typ balení kartonu: | Balitelné |
| Typ obalu kartón: | Expedovatelné |
| Výška jedn. balení: | 19.3 |
| Záruka: | 60 |
| Fanless switch: | Ano |
| Optika: | Ne |
| PoE In standard: | Nepodporuje |
| PoE Out standard: | Nepodporuje |
| PoE power budget: | Nevztahuje se W |
| Provedení switche: | Desktop |
